G655 GYTS Outdoor Armored Fiber Optic Cable with ITU G652D and G657A Stranded Loose Tube for High Performance

Nome da marca:	HX
Número do modelo:	HX-GL2
MOQ:	1

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Guangdong, China

Certificação:

CE/ROHS/ISO9001

Número de condutores:

Cor do cabo:

Preto

Material da jaqueta:

Jaqueta PE

Estrutura do cabo:

Tubos de múltiplos lâminas

Opções de fibra:

UIT G652D, G657A, Om1, Om2, Om3, Om4

Membro da força:

Fibras de plástico reforçadas com arame de aço central ou fibra de vidro

Atenuação @1310nm:

≤0,36dB/km (G.652), ≤0,40dB/km (G.655)

Atenuação @1550nm:

≤0,22dB/km (G.652), ≤0,23dB/km (G.655)

Largura de banda @850nm:

≥500 MHz*km (50/125 μm), ≥200 MHz*km (62,5/125 μm)

Largura de banda @1300nm:

≥1000 MHz*km (50/125 μm), ≥600 MHz*km (62,5/125 μm)

Abertura numérica:

0,200±0,015NA (50/125 μm), 0,275±0,015NA (62,5/125 μm)

Comprimento de onda de interrupção:

≤1260nm (G.652), ≤1450nm (G.655)

Diâmetro do cabo:

9,2 mm a 16,5 mm (varia de acordo com a contagem de fibras)

Força elástica permissível:

600/1500 N (longo prazo/curto prazo)

Raio de flexão:

10D/20D (estático/dinâmico)

Temperatura de armazenamento:

-40 ° C a +70 ° C.

Destacar:

G655 Outdoor Armored Fiber Optic Cable

ITU G652D GYTS Fiber Optic Cable

G657A Armored Optical Fiber Cable

Descrição do produto

Hot Sale Outdoor Armored Cable With G655 GYTS Optic Fibre Cable With Stranded Loose Tube

Technical Specifications

	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)
@850nm			≤3.0dB/km	≤3.3dB/km
@1300nm			≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km	≤0.40dB/km
@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)	@850nm		≥500 MHz*km	≥200 MHz*km
@1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical aperture			0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength		≤1260nm	≤1450nm
Applicable: pipeline, overhead

Fiber Optic Cable Configuration

Number of fibers	Number of casings	Number of filling ropes	Fiber optic cable diameter (mm)
2~6	1	4	9.2
8~12	2	3	9.2
14~18	3	2	9.2
20~24	4	1	9.2
26~30	5	0	9.2
32~36	6	0	9.7
38~48	4	1	10.5
50~60	5	0	10.5
62~72	6	0	11.5
74~84	7	1	13.2
86~96	8	0	13.2
98~108	9	1	14.6
110~120	10	0	14.6
122~132	11	1	16.5
134~144	12	0	16.5
146~216	13-18	5-0	16.5
288	24	0	16.5

Mechanical Properties

Fiber Optic Cable Weight (kg/km)	Allowable tensile force long term/short term (N)	Allowable flat pressure long term/short term (N/100mm)	Bending radius static/dynamic (mm)
80	600/1500	300/1000	10D/20D
97	1000/3000

Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

Product Characteristics

Steel jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers

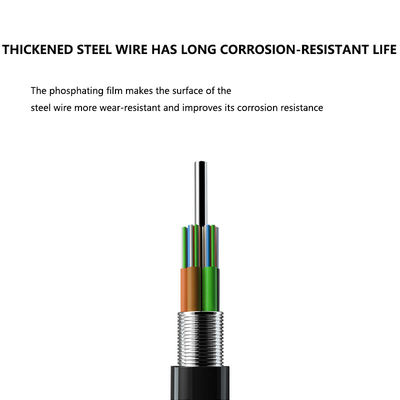

With steel central strength member

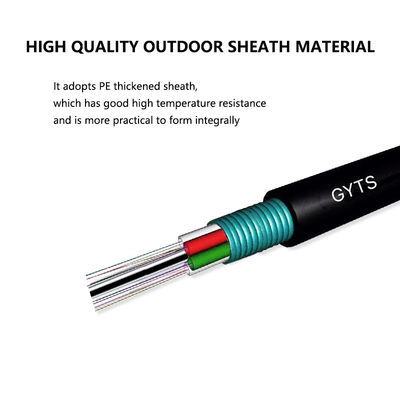

PE jacket prevents UV damage (UV-resistant material can be added)
Excellent performance under high and low temperatures
Anti-aging properties

Applications

Conduit/buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Standards Compliance

GYTS complies with YD/T901-2009 and IEC 60794-1 standards

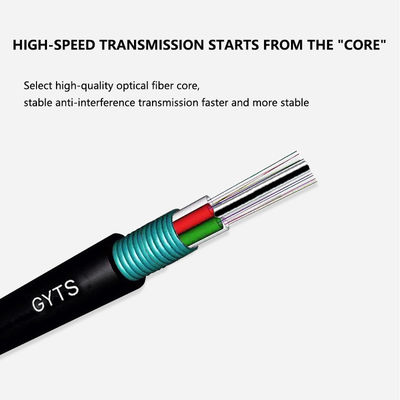

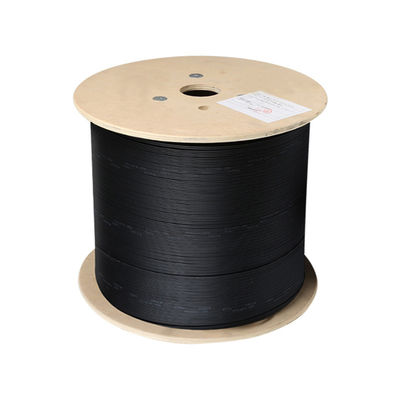

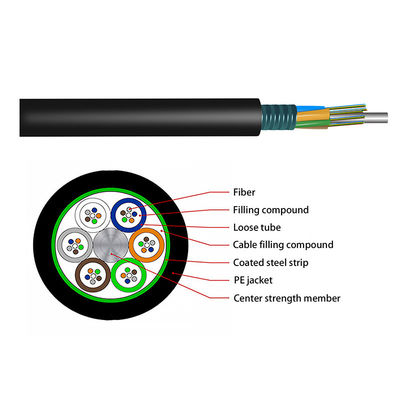

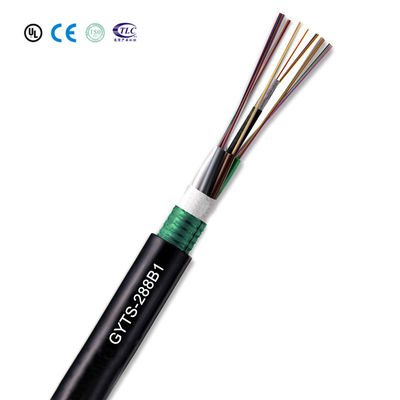

Product Images

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
