GYTA53 Outdoor Armored Fiber Optic Cable with 48/72/96/144 Core G652D/G657A1/G657A2 Fiber Type and Custom Length

Nome da marca:	HXCOWO
Número do modelo:	HX-SW4
MOQ:	50

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Guangdong, China

Certificação:

Tipo de fibra:

G652D/G657A1/G657A2

Contagem de fibras:

2-288 núcleos

Material da jaqueta:

PVC LSZH LSOH PE HDPE

Peso do cabo:

177-312kg/km

Força de tração a longo prazo:

N 1000

Força de Tração Curto Prazo:

3000 N

Força de achatamento a longo prazo:

800N/100mm

Força de achatamento de curto prazo:

1500N/100mm

Raio de curvatura estático:

12.5D

Raio de curvatura dinâmico:

Quantidade de tubos soltos:

Número da corda de enchimento:

Material de bainha:

PE/PVC/LSZH/PC

Recurso à prova d'água:

Pomada bloqueadora de água

Armor Type:

duplo blindado

Destacar:

48/72/96/144 Core Outdoor Armored Fiber Optic Cable

G652D/G657A1/G657A2 Fiber Type GYTA53 Fiber Cable

Custom Length Armoured Fiber Optic Cable

Descrição do produto

HXCOWO GYTA53 48/72/96/144 Core Outdoor Armored Fiber Optic Cable

TECHNICAL PARAMETERS

Core Number	Loose Tube Quantity	Filling Rope Number	Fiber Optic Cable Weight (kg/km)
2-6	1	5	177
8-12	2	4	177
14-18	3	3	177
20-24	4	2	177
26-30	5	1	177
32-36	6	0	177
38-48	4	1	194
50-60	5	0	194
62-72	6	0	204
74-84	7	1	239
86-96	8	0	239
98-108	9	1	275
110-120	10	0	275
122-132	11	1	312
134-144	12	0	312
146-216	13-18	5-0	312

Allowable Tensile Force Long Term/Short Term (N)	Allowable Flattening Force Long Term/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
1000/3000	800/1500	1000/3000
12.5D/25D

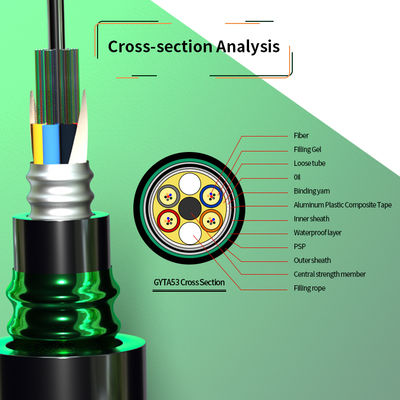

PRODUCT FEATURES

The inner casing is filled with buffer grease, which protects the optical fiber and plays a waterproof role
The use of loose casing stranded to ensure the stability of the cable structure
Strengthening parts to bear the axial load
The cable core is filled with water-blocking ointment, which can effectively waterproof the cable
Aluminum tape longitudinal wrapping, good moisture barrier performance
The inner sheath can effectively buffer the external mechanical load
Longitudinal wrapping of steel tape, with good lateral pressure resistance

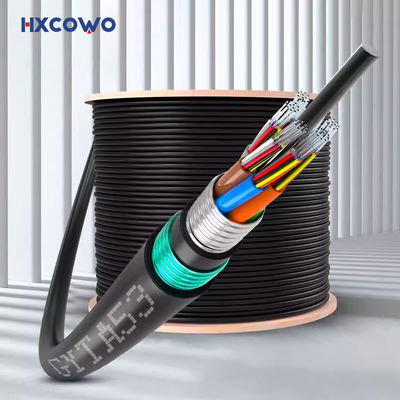

GYTA53 SINGLE-MODE OUTDOOR DOUBLE ARMORED FIBER OPTIC CABLES

Applied to underground laying/outdoor overhead/indoor trunking

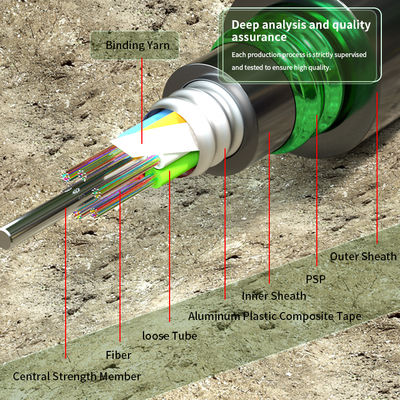

DEEP ANALYSIS AND QUALITY ASSURANCE

Each production process is strictly supervised and tested to ensure high quality

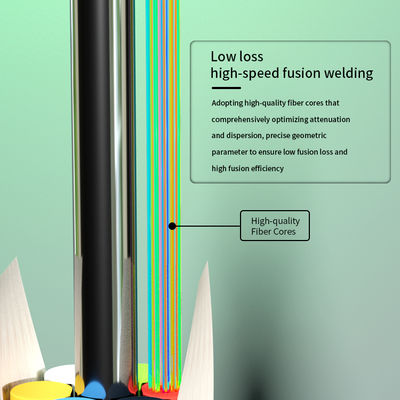

LOW LOSS, HIGH-SPEED FUSION WELDING

Adopting high-quality fiber cores that comprehensively optimizing attenuation and dispersion, precise geometric parameter to ensure low fusion loss and high fusion efficiency

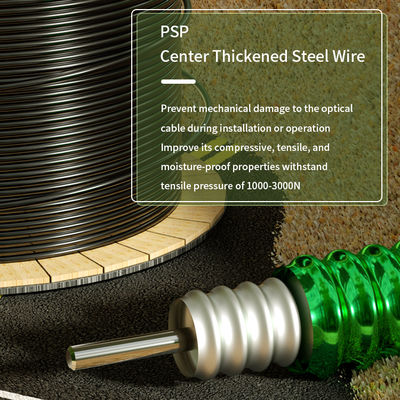

PSP CENTER THICKENED STEEL WIRE

Prevent mechanical damage to the optical cable during installation or operation Improve its compressive, tensile, and moisture-proof properties withstand tensile pressure of 1000-3000N

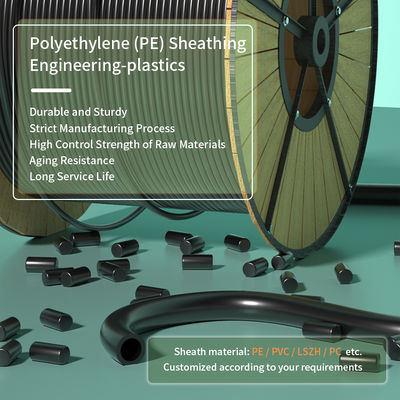

POLYETHYLENE(PE) SHEATHING ENGINEERING-PLASTICS

Durable and Sturdy Strict Manufacturing Process High Control Strength of Raw Materials Aging Resistance Long Service Life

Sheath material: PE/PVC/LSZH/PC etc. Customized according to your requirements

CLEAR METER MARKERS SUFFICIENT METER QUANTITY

Clear meter markings on the PE outer sheath for convenient and fast construction wiring

FREQUENTLY ASKED QUESTIONS

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation,air transport,Express, etc.
