| Brand Name: | HX Fiber |
| Model Number: | HX-TYTX1 |
| MOQ: | 100 peças |
| preço: | Negotiable |
| Packaging Details: | Saco OPP+caixa de cartão de exportação |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
PRODUCT PARAMETERS
|
|
|
|

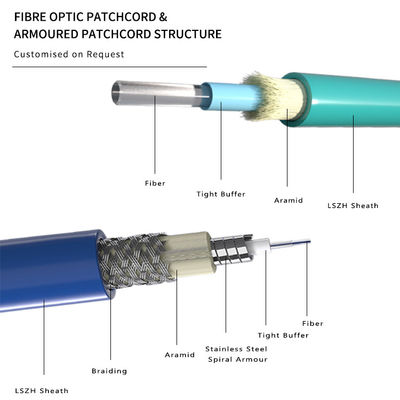

Fiber optic outer diameter
|
φ0.9mm, φ2.0mm, φ3.0mm available
|
|
|
Insertion loss
|
≤0.2dB
|
|
|
Return loss
|
PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB
|
|
|
Interchangeability test
|
≤0.2dB
|
|
|
Vibration test
|
≤0.1dB (10-60Hz, 1.5mm amplitude)
|
|
|
Tensile strength test
|
≤0.1dB (0-15Hg tension, except for φ0.9mm fiber)
|
|
|
High-temperature test
|
≤0.2dB (+85℃, continuous for 100 hours)
|
|
|
Low-temperature test
|
≤0.2dB (-40℃, continuous for 100 hours)
|
|
|
Temperature cycling test
|
≤0.2dB (-40℃ to +85℃, after 5 cycles)
|
|
|
Humidity test
|
≤0.2dB (+25℃ to +65℃, relative humidity 93%, after 100 hours)
|
|
|
Common connectors
|

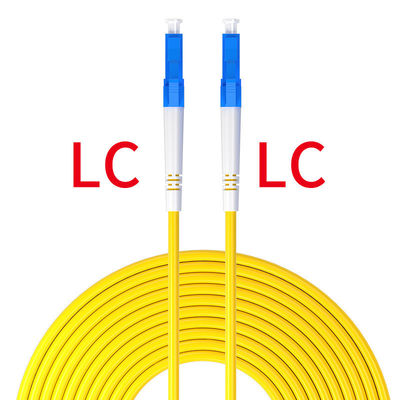

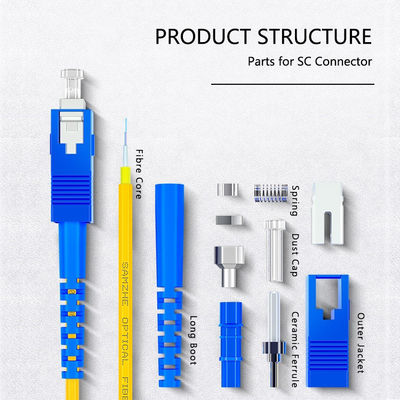

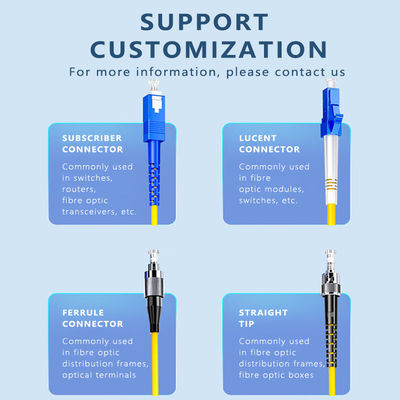

SC (standard connector)/LC (small form-factor connector)/FC (ferrule connector)/ST (straight tip connector)
|
|
|
APPLICATION SCOPE
|
|
|
|
Fiber optic communication systems, fiber optic access networks, fiber optic data transmission, fiber optic CATV, local area networks (LAN), testing equipment
|
|
|
|
|
