Direct Buried GYTA/GYXTW/GYTS/GYFTS Armored Fiber Optic Cable with Rodent Proof Design

Nome da marca:	HX
Model Number:	HX-GL2
preço:	negotiable
Detalhes da embalagem:	Canais de madeira, Canais de ferro

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem:

Guangdong, China

Certificação:

CE/ROHS/ISO9001

Tipo:

Cabos de fibra óptica

Número de condutores:

Aplicação:

Tubos e condutas exteriores

Nome do produto:

Cabo ótico exterior da fibra

Cores:

Negro

Capa:

Jaqueta PE

Duração:

Comprimento personalizado

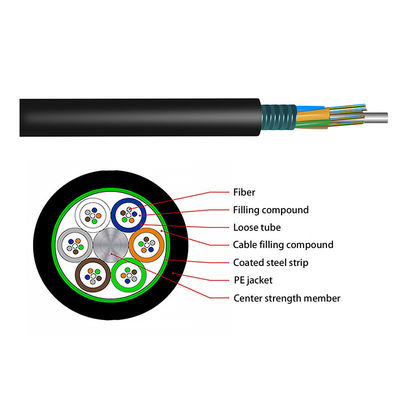

Estrutura do cabo:

Tubos de múltiplos lâminas

Opções da fibra:

ITU G652D ,G657A,OM1,OM2,OM3,OM4

Membro da força:

Fibras de plástico reforçadas com arame de aço central ou fibra de vidro

Embalagem:

Bateria de madeira

Porto:

Shenzhen

Habilidade da fonte:

1500000 partes/partes por Mês

Destacar:

Cabo de fibra ótica blindado de GYTS

Cabo de fibra ótica blindado de GYXTW

GYTA Cabos blindados de fibra óptica

Descrição do produto

			G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)	@850nm			≤3.0dB/km	≤3.3dB/km
		@1300nm			≤1.0dB/km	≤1.0dB/km
		@1310nm	≤0.36dB/km	≤0.40dB/km
		@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (A-level)		@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical aperture					0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength			≤1260nm	≤1450nm
Applicable: pipeline, overhead

Optic fibre cable (in increments of 2 fibers)	Number of fibers	Number of casings	Number of filling ropes	Fiber optic cable diameter (mm)
GYTA-2~6	2~6	1	4	9.2
GYTA-8~12	8~12	2	3	9.2
GYTA-14～18	14~18	3	2	9.2
GYTA-20~24	20~24	4	1	9.2
GYTA-26~30	26~30	5	0	9.2
GYTA-32~36	32~36	6	0	9.7
GYTA-38～48	38~48	4	1	10.5
GYTA-50~60	50~60	5	0	10.5
GYTA-62~72	62~72	6	0	11.5
GYTA-74~84	74~84	7	1	13.2
GYTA-86～96	86~96	8	0	13.2
GYTA-98~108	98~108	9	1	14.6
GYTA-110~120	110~120	10	0	14.6
GYTA-122~132	122~132	11	1	16.5
GYTA-134~144	134~144	12	0	16.5
GYTA-146~216	146~216	13-18	5-0	16.5
GYTA-288	288	24	0	16.5

Fiber Optic Cable Weight (kg/km)	allowable tensile force long term/short term (N)	allowable flat pressure long term/short term (N/100mm)	bending radius static/dynamic (mm)
80	600/1500	300/1000	10D/20D
80
80
80
80
97	1000/3000
109
109
126
153
153
182
182
221
221
222
283
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)

Characteristics:

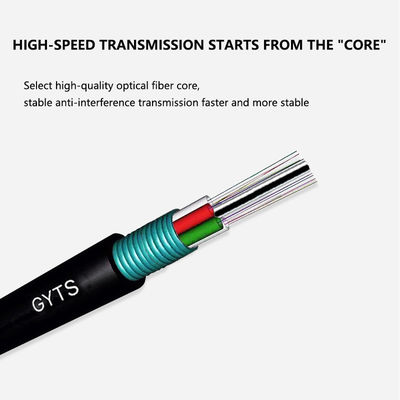

·Steel jacket offers high tension and crush resistance special gel in the tube offers critical protection for the fibers

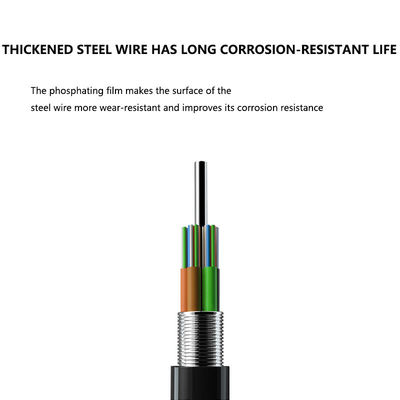

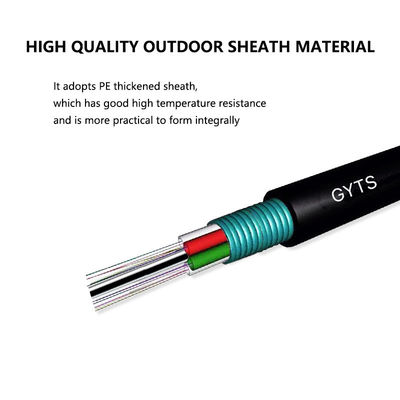

·With steel central strength member ·PE jacket itself prevents UV,and UV material can be added ·to perform much better It's avalable under high and low temperatures ·anti-aging

Applications:

·Conduit/buried ·Connecting communication equipments ·Mulfi-cores wiring systems in data centers

Standard:

·GYTS complies with YD/T901-2009 and IEC 60794-1 standards ·YD/T 901-2009 & IEC 60794-1

Product Description

Product Design

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

Customer evaluation

Company Profile

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

Service&Production Capacity

Foreign Exhibitions

Cooperative Brand&Certification

Payment&Transportation Method

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
